Offboard wiring

A few people have commented on posts asking about offboard wiring.  I use a daisy chained power supply, so for things I build for myself I rarely include a battery snap unless it's a positive ground effect which can't be daisy chained with more common negative ground pedals.

This should help people who may be new to the hobby to see where all the wires shown on my layouts need to go:


This is a less common way of wiring the switch, but it's my favourite method now because it grounds the board input during bypass which will prevent noise bleedthrough that you can get with some high gain circuits.

Dual Effect Example



Switchable Boost

This version shows an optional switchable effect (such as a booster) before the main board.  The main stomp will bypass everything, the second stomp will turn the booster on and off.  If you want the booster after the main effect, solder the input side up as usual and take the main board output to the second stomp instead.





If you want to include a battery snap there are other guides out there such as Beavis Audio's which is excellent.

For pot numbering I stick to this convention:



A lot of the pots I have stocked up on were bought from Futurlec and have PCB pins, so I use this method to solder up the pots which makes it much easier:

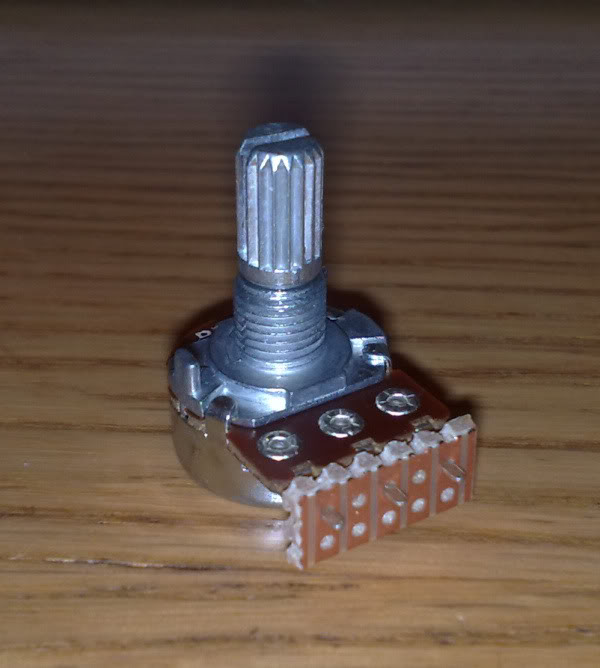

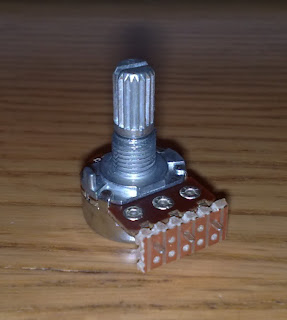

A small 5 x 2 piece of vero board is great for this, makes linking pins much easier or even adding the odd component to the pot if it would be convenient to.  Another advantage to this is that the board seems to act like a heat sink so very little heat is transferred to the pot avoiding potential damage.

Need to tame a pedal that is a bit loud with no level control.  Add a simple daughterboard so you can set the level you want and forget it. This is a really small fix and should fit in any build without problem:



Any queries then ask away in the comments.

189 comments:

  1. I've got to thank you for this one. I tried it and I love it. I don't know why but my build just feels more solid than before. I'm also started using the little vero pieces on the pots. It's a very nice little detail.

    I would like to see some other tips like these if you have any. Like how do you wire pedals up? What's the process? Tips on making it as solid as possible, etc.

    Cheers man!

    ReplyDelete
  2. I have tried to do this with a 2.1mm DC socket and I can't get it to work.... Any help please.

    All works fine if I put a battery snap on.

    I am using metal socket and 9v middle pin, ground the one that looks second one down.

    I tested on my multi meter and getting power to board but no noise when pedal engaged, bypass, works fine...


    Again please help.... I have been varnishing me tin for a week lol.

    ReplyDelete
    Replies
    1. Well if it works with battery but not with the power supply we know exactly what the problem is. You say you're using a metal socket with the centre pin positive, but what power supply are you using for it? If it's one you use with other effects then the centre pin is likely to be negative.

      Delete
    2. Also he might be using a Metal jack instead of a plastic jack. IMO i think it was my mistake the first time that i used a metal jack and it shorted out to the 1590b encloser.

      Delete
  3. Thanks Mate I will give it a try.

    Yes I am using my power supply I use for all my 3 pedals.. (Although after this I can see myself having every pedal I dreamed off, but could never afford).

    I sort of assumed that the center pin was live and the center pin on the back was also live. I will try it in th morn.... So whats the 3rd pin for????

    ReplyDelete
    Replies
    1. That's for breaking the connection to the battery when the DC supply is plugged in so the battery doesn't drain. I never include battery snaps which is why my diagram doesn't include it, but this one shows how it is connected:

      http://home.centurytel.net/flanneldrawers/mbb-wiring-diag.jpg

      And this shows the connections on the plastic sockets (they should be in the same place):

      http://i76.photobucket.com/albums/j6/IvIark_2006/DIY/DCjack.jpg

      Delete
  4. Cheers Ivlark, thats pic is a big help..

    ReplyDelete
  5. Ivlark...Still have a problem, wired the socket as you said, worked, great, but know I have a really bad hissing sound...I have built the super hard on

    http://tagboardeffects.blogspot.co.uk/2010/02/zvex-super-hard-on.html

    and put the top ground to the bottom ground as you look at the layout. Then wired as above...The hissing sound does not go the lower you turn the knob, and it increases when I strum... Have I fried the transistor???

    ReplyDelete
  6. question. If I wanted to run bi-color LEDs in a pedal, could i connect the negative for one color to the top left, as you've shown with this diagram, and the other color to the bottom left? in theory that should work if i only have the ground attached to the left center and middle bottom lug, right?

    ReplyDelete
    Replies
    1. Yes that would be fine. Make sure you use a bicolour LED with a common anode.

      Delete
    2. the ones that I found are common cathode, so i was going to put the 9v into the left middle lug. That shouldn't put any noise into the circuit, right?

      Delete
    3. You could do that. I prefer not to myself but that's more because of some niggling doubt I have about it in the back of my mind rather than there actually being anything fundamentally wrong in doing so. I've known plenty of people in the past switch 9V but just prefer the other way myself.

      Delete
    4. yeah I definitely understand that. unfortunately i'm bound by whats available to me. oh did I mention that I got that chorus working? I had a 47k resistor where it should've been 470k. stupid color bands all look the same at 2am

      Delete
    5. Oops! :o) Well at least you've got it working now. I think particularly with more complex builds, it really is worth spending 20 minutes measuring components before you start. Once they're in circuit it's a lot more difficult to spot the point of failure or error, and 20 minutes could save you days of fault finding and frustration.

      Delete
  7. Question on the dual pedal layout. Any way of incorporating a switch that would change the order of the pedals? Say you have pedal "A" going into "B"...any way of adding a switch that would make "B" go into "A"?

    ReplyDelete
    Replies
    1. I would also like to know the answer to this!

      Delete
    2. Check out Dano's solution to this over at Beavis Audio (great resource btw...). The Effect Order Switcher on this page,( http://www.beavisaudio.com/projects/Looper-Switcher/index.htm) you'll need to modify it slightly since it's designed as a switch for two boxes but the concept is the exact same. In/Out from A and In/Out from B controlled by a 4PDT if you want led status of configuration. You could sub a bi-color common annode LED from Tayda instead of using 2 separate ones.

      Delete
  8. Hi, Mark, I posted this question on another thread, but you may not catch it.
    The wire labeled 'Ground' coming from a volume pot, does it go to the sleeve of the output jack?

    Thanks,
    Mark L.

    ReplyDelete
    Replies
    1. All grounds must be connected together, so you can take it to the output sleeve, but another wire will have to go from the sleeve to the next ground point and continue the daisy chain until all of them are connected together. Board ground, input sleeve, output sleeve, grounded pot lugs, switch for LED and DC adapter. If you test the finished pedal with a multimeter you want to have continuity between all points of ground or the pedal won't work properly.

      Delete
    2. Thanks, Mark, all grounds are connected, from pot to output sleeve to footswitch, across to input, then back up to board ground.
      Thanks for the advice.

      Mark L.

      Delete
  9. This info is not for Mark, but to anyone looking for it... :)

    Hmm... I think we'll need a version with battery snap on it. The usual way is to take the battery + to dc jack's switching pin (usually the middle one) and negative to input jack's ring. Input jack has to be stereo to have that.

    That's the "industry standard" way, as it disconnects battery if a) there's no cable plug in input jack or b) there's dc plug present. So in a way, it is simple, but effective way to prolong battery life.
    +m

    ReplyDelete
  10. hey mark...does the orientation of the 3pdt matter? I noticed on the beavis wiring diagram, the switch isn't wired the same way, can these be set up different ways? I dont know much about what each contact on the switch does and was just wondering. thanks.

    ReplyDelete
  11. where can I get wires that are suitable for offboard wiring? preferably I'd like to use different colors to help keep things neat, and be flexible enough.

    ReplyDelete
    Replies
    1. Any electrical or electronic shop should sell equipment wire. Depending on what part of the world you are in (I'm not too sure about AWG equivalents) but here in the UK I use 16/0.2mm wire most of the time, or 7/0.2mm if there are a lot of wires and I want to keep the wire size to a minimum. For tagboard layouts I use something bigger like 24/0.2mm or even 32/0.2mm because I think that type of build suits thicker wires.

      For wiring pots I've also just bought a big reel of 20 way ribbon cable which I cut to length and keep in groups of 2 or 3s for the pots. That will last a very long time and is currently my favourite way of doing it because it keeps the wires neat, compact and together without having to think about it.

      Delete
    2. I'm in the US. Thanks! The ribbon cable idea is great! I'll have to try it. I've got 5 builds lined up right now and not enough wire for two of them haha. This blog has been extremely helpful.

      My goal is to eventually understand what the different sections of a schematic do to get the sounds you want, and understand how to modify them or design my own effects.

      Delete
  12. Is there any rule for the LED resistor value? also anyone has a diagram to show the LED wiring? Thank you.

    ReplyDelete
    Replies
    1. http://led.linear1.org/1led.wiz
      fill in the blanks and you're on your way.

      Delete
  13. For the BOX OF ROCK you use dual effect or switchable boost wiring?
    Thanks

    ReplyDelete
    Replies
    1. I'd definitely used the dual effect wiring, then the SHO can be used independently which I suspect most people would want.

      Delete
    2. Thank you very much Ivlark, I have already finish and it seem that doesn't work, Im not very expert and probably I make a mistake

      Delete
  14. Is possible to have a graphic explanation of pots and switch wiring like the first version you posted?
    Thanks again!

    ReplyDelete
  15. Newbie question. I am at the point to start my first ever pedal and I hope you would be kind enough to answer.

    I have seen an other way of wiring the 3PDT, which also put the board to the ground when the switch is in bypass position. It is a schema from gaussmarkov.
    http://gaussmarkov.net/wordpress/thoughts/wiring-up-a-1590b/

    As it also seems to be logical, could you explain precisely what makes your proposal better, or what are the advantages in comparison to the other proposal.

    Many thanks in advance.

    ReplyDelete
    Replies
    1. This one grounds the input of the board when bypassed too.

      All the switches work like this: http://mirosol.kapsi.fi/varasto/boxes_other/pots_switches.png - So all the poles (or columns) are connected up and middle in one position and middle and down in the other.

      But in general, these two wirings do exactly the same thing. Mark's (which i believe is the Skreddy way) just does it with one lug less - that gets grounded too.

      Who's to say which is better? I went with this for the frist 6 months: http://www.generalguitargadgets.com/pdf/ggg_sw_3pdt_tb_gi_dcj.pdf
      All three do exactly the same thing. I'm currently using that with all permanent grounds connected together...
      +m

      Delete
  16. I apologize for my stupidity, but what kind of switches are you guys using? I thought these build were based on a DPDT footswitch but the layout appears to show something else.

    ReplyDelete
    Replies
    1. 3PDT stomp switches like these:

      http://www.ebay.co.uk/itm/271112295378

      You could use a DPDT stomp switch if you want, but you will have to omit the LED (and so ignore the 3 left hand lugs in the layout above).

      Or you could do it with a DPDT stomp AND an LED if you really wanted to, but you would have to use millenium bypass which will make the offboard a little more complicated. I will add a small millenium bypass layout though if it's something people may be interested in.

      Delete
  17. I'm a bit confused about how to wire the jacks here.. I can't tell where on the jacks the wires are going to, especially on the inputs.. Any help or further illustration would be greatly appreciated.. I LOVE this blog by the way.

    Thanks,

    -Spenser!

    ReplyDelete
    Replies
    1. It looks pretty clear to me, the input tip goes to lug 9of the stomp switch which is also linked to lug 4. The output tip goes to lug 8 and all the sleeves are connected up with the other ground connections.

      1---4---7
      2---5---8
      3---6---9

      Delete
    2. ....and if you are unclear which lug is which on the socket, just plug in a guitar lead in and use a DMM to test for continuity.

      Delete
    3. My apologies, I'm still a bit of a noob.. So nothing is soldered to the ring?

      Delete
    4. Not unless you're using a battery, I don't use them so my layout excludes them and just uses mono sockets. If you want to use a battery check out the offboard wiring layouts on General Guitar Gadgets, Beavis or similar.

      Delete
  18. This might make it clearer to understand:

    http://www.beavisaudio.com/techpages/PedalPower/

    Don't be afraid to ask, most of us were asking questions like that, not that long ago ( ....and in my case, still am)! Mark's diagrams above don't use batteries so I think don't require the ring connected. If you do, then the ring would connect to the negative terminal of the battery(black lead). Doing it that way would disconnect the battery when is taken out. I don't use batteries either as they nearly cost as much as some of the circuits!

    If any of this is wrong wiser person will correct me :-)

    ReplyDelete
  19. Nice! I would totally prefer not to have a battery option! Think I got it now thank you so much!

    ReplyDelete
  20. Affsss i follow slowly all steps and my FF SI clone not work too -_- i just replace bias pot for trim and follow this:

    http://i76.photobucket.com/albums/j6/IvIark_2006/Layouts/Vero/FuzzFaceNPN-smallwithbiasandantioscillationmeasures.png

    ReplyDelete
  21. For the second layout (switchable boost), where do the Ground and 9V leads from the vero go?

    ReplyDelete
    Replies
    1. 9V and ground are both daisy chained to whatever boards or offboard components require them.

      Delete
  22. Done!!! i was using a old 3pdt and i just replace it and BINGO! Thx for your very good job man i love this site!! I will try COT50 now!!

    ReplyDelete
  23. Ivlark!! I was playing with my FF clone for 20min and sound very good and loud and after this the pedal make some crackles and pops and the sound go out. What can be??? Thank you!

    ReplyDelete
    Replies
    1. A bad joint somewhere making the connection intermittent is the most likely cause.

      Delete
  24. Ivlark i think i was using a damaged 47pf cap because i analyse all and just put out this one and now the fuzz is alive...what exactly do this cap to circuit?? Is a filter?? I dont have more cap here to try.

    ReplyDelete
    Replies
    1. If it's a Fuzz Face across the base and collector then yes it's a filter to roll off some high end

      Delete
  25. Thank you doctor!!! ;-)

    Here is the pedal but without 47pf cap:
    http://imageshack.us/f/248/dscf2299j.jpg/

    http://imageshack.us/f/15/dscf2300z.jpg/

    http://imageshack.us/f/577/dscf2302p.jpg/

    Sound:
    https://soundcloud.com/massdoll-1/demos-rust-fuzz-1




    ReplyDelete
  26. when i roll down the guitar volume, it get radio frequences....i will try this 47pf cap

    ReplyDelete
  27. Hi people! I want to ask you something just for verification or an extra explanation: When I wire the pcb to in a box like shown above, I take just one ground wire from the pcb wire it to the source 9V or adapter and from there I connect all other grounds to the jack inputs, pots etc.?!. I'm scared that I wont get enough ground contact and that I'll have buzzing or something so I always take another ground wire from the pcb to the jacks- Is this good or bad..I usually use plastic input jacks with plastic screws so they have no connection with the box...And I want to ask another thing: Usually the wires from the source are rolled together for canceling potential buzz- Is there any need for other wires to be rolled up together in a pedal or just these?

    ReplyDelete
  28. Thanks again Mark, i was troubleshooting a loud popping issue in my last build and in place of classic the pull down resistors, i tried your 3pdt wiring method... the pop is gone!

    ReplyDelete
  29. Question about Pop-ing. Its about the booster that I have recently made. I have wired the pedal like shown with 2K2 resist. I'm trying to incorporate this solution but it doesn't work maybe because it's not meant for the first wiring shown at the top or what am I doing wrong?Please help

    ReplyDelete
    Replies
    1. Here are some pictures from the wiring
      http://www.flickr.com/photos/95025812@N07/8695637751/in/photostream
      http://www.flickr.com/photos/95025812@N07/8695637207/in/photostream
      http://www.flickr.com/photos/95025812@N07/8696757024/in/photostream

      Delete
    2. One end from the + is going to the led the other to the + of the Batt and the ground is going to the ground. When I connect this bug the pedal doesn't work.

      Delete
    3. The way you've done it looks ok, are you sure it isn't shorting out on the tip of the output socket?

      Delete
    4. Hahaha it was a close one but no...Without Led everything is working perfectly. With a LED it has a PoP..and I don't know how to remove it :)

      Delete
    5. And with this "bug" (the schematics with the 2R and Cap) that is given as solution it doesn't play at all :) and when I push the switch there is PoP again incredible :)

      Delete
    6. Have a read of this:

      http://www.muzique.com/lab/led.htm

      Delete
    7. The circuit that I'm calling a "bug"(and I have posted a pic from it) is the first solution from this web page.With that the pedal doesn't work at all and that's why my question is: These solutions work with the wiring shown here or I have to rewire the switch somehow to incorporate the pop-ing solutions from http://www.muzique.com/lab/led.htm
      ?

      Delete
  30. About the Popping again:
    This two pic
    http://www.flickr.com/photos/95025812@N07/8695637207/in/photostream
    http://www.flickr.com/photos/95025812@N07/8696757024/in/photostream
    are from this schematics
    http://www.flickr.com/photos/95025812@N07/8702102260/in/photostream
    When I connect this to my pedal
    http://www.flickr.com/photos/95025812@N07/8695637751/in/photostream
    that is wired like this
    http://www.flickr.com/photos/95025812@N07/8700984037/in/photostream
    The pedal doesn't work at all. I have sound when is in bypass no sound when is ON. Should I change the wiring of the switch compliantly and then add the pop canceling schematics? Please help me with solutions. Best Regards Gogo

    ReplyDelete
    Replies
    1. OK let me take a shot at this. Obviously there are other issues but let's start at the beginning here.
      I do the AMZ antipop thing religiously and what I can't help noticing in your first two images is that you have two wires coming off your led board. And where exactly is the led on your led board? :) There should be three wires coming off it (9V, gnd and switch) and it should contain a led. I can give you pictures when I get home.

      Note that the led board has nothing to do with your circuit's operation, it only gets grounded and lit through the footswitch and is in no way an indication of your actual effect operation. Just to get things straight, when you connect everything according to your fourth picture and just disconnect the top left pin (led), does your effect work?

      Delete
  31. Hi Goran thanks for reply. Please send some pics on my mail or here so that I (we) can see hoe you wire the AMZs. Yes there is a third wire you can see the LED here http://www.flickr.com/photos/95025812@N07/8695637751/in/photostream

    Please send some pics from your pedal or switch with AMZ installed (gogapopgeorgievski@yahoo.com)

    ReplyDelete
  32. OK found one right here. It's the thing to the left of the footswitch. I just stuff the led through a bezel (the little plastic holder is missing on this picture but this is how I install them).

    https://lh4.googleusercontent.com/-jOs7zfmUS48/UQt6pT5MHoI/AAAAAAAAAgU/D_wzfRFVR6o/w896-h672/Black+Arts+Toneworks+Pharaoh.JPG

    ReplyDelete
    Replies
    1. I can also send you a vero layout for it, later today...

      Delete
    2. And here are two more

      https://lh6.googleusercontent.com/-Nq7htbC9Ofk/UYONS6zu2aI/AAAAAAAAAzo/9--jZ0Q--c0/w896-h672/RC+Booster.JPG

      https://lh5.googleusercontent.com/-2lErj7hUBak/UYONWYOp9-I/AAAAAAAAAz0/c_U4yg5vx9M/w896-h672/Sweet+Honey.JPG

      Delete
  33. Super Goran. Please send the vero so that I can fix this today.I'll post pics too when it's done. (Hvala Goran za ovo nadam se da razumes poshto predpostavljam da si negde iz Ex.Yu prostora, dao sam ti i moj mail tako da mozes i tamo da mi poshaljes da razmenimo kontakt da nepricamo na forum nashe jezike nije fer) :)

    ReplyDelete
    Replies
    1. Evo slika, ako ne vidiš detalje reci pa ti pošaljem veći skrinšot.

      For others that might be interested as well, here is my little vero:

      https://lh5.googleusercontent.com/-tOqXNxaJkKw/UYPPDet119I/AAAAAAAAA0c/kL73dteQN7w/w209-h120/amz_led.jpg

      Resistor values are as per amz site, 4k7 and 390 but feel free to experiment with the 4k7 value for other led colors and types. Also mind the trace cut between the cap and the led.

      Delete
    2. Hi again Goran. I have made this the pop still exists. I'll change the switch even do it's a new one.Then I'll try to change the LED and see what will happen.Can you please tell me and send a pic how do you wire the switch? Thanks mate (Hvala puno!!!)

      Delete
    3. The pop is still there? Strange...
      I wire the switch according to Mark's diagram at the top of this page. The led lug connects to the "switch" wire on my amz vero (which is powered directly from the dc jack).

      Failing that, I can only recommend two more things. One is what Jack recommends on his site right next to the schematic:
      "If the LED indicator circuit is still causing a pop in the audio, you can increase the value of C1 to 22uF or even 47uF as needed. "
      Second is that you check out this thread, it might apply to your situation:
      http://guitar-fx-layouts.42897.x6.nabble.com/Hearthrob-Tremolo-and-Pulldown-resistor-tp3447.html

      Delete
    4. The PoP-ing subject is about ZVexs Super Hard On boost. I rewired the switch by Gaussmarkov schematics and also I have added the Gorans AMZ Vero. I think finally the PoP is gone but my amp needed repair so I'll have to do that first and write again about what happened for sure.

      Delete
  34. I did this wiring for my Timmy I just built and all I'm gettin is hiss/static.

    It lights up and the pots control the hiss but no guitar sound at all. Nor is it bypassed through.

    I've checked all solders and wiring and components and its all fine. :(

    ReplyDelete
  35. Another dumb noob question: The stomp switch has the lugs going horizontally right?

    ReplyDelete
    Replies
    1. I'm working on a Devi Ever Karaoke Party and it has two grounds on the layout, where would I attach the other ground to using this layout for offboard wiring?

      Delete
    2. Whereever is easiest for you. One of the jacks' sleeves or the dc jack ground or the footswitch.

      If you are talking about the ground wire coming off a volume pot on Mark's layout, you can even wire it back to the board, anywhere on the ground strip, say to the right of the 100uF cap negative lead.

      Delete
  36. More of a curiosity, but how many pedals can you wire up and still get 9v going to each board? I was actually thinking of grabbing some noise layouts from here and making a console of sorts, and then there's the idea of combining multiple fuzzes. Thanks again for all the work you guys do btw.

    ReplyDelete
    Replies
    1. It all really depends on what kind of power supply you are using. If you are using a well regulated supply, it will put out nominal voltage no matter what the load. You only need to make sure that the supply can provide the current draw needed to power all your circuits and that you have adequate heat management for the supply.

      Delete
  37. So this DOES work for positive ground effects? If not, would you just inverse the black and red wires from the battery clip?

    ReplyDelete
    Replies
    1. The way the effect is true bypass switched in is the same no matter whether the effect is positive or negative ground. That only comes into the equation for the LED wiring, and then you would just connect +ve to where you connect ground with the negative ground circuits (and the same on the circuit boards of course).

      Delete
    2. So all I have to do is invert the black and red wires starting from the battery clip but keep everything else as it is (including LED orientation; anode (+) towards resistor, which is connected to the battery clip's black wire)

      Delete
  38. I've used this method many times and it work perfectly. The one tricky part for me is fitting two wire into the DC jack. Like one wire going to the 9v on the board and one going to the LED. Is there a better way to connect the two. Maybe tin the tips of the wires. I ask because I building my next one for a friend and I want it to be as professional as can be.

    ReplyDelete
    Replies
    1. You can always take the led wire off the board's 9v strip...

      Delete
    2. Thats a good Idea, but I'm using the red llama layout on this site and it doesn't have an extra space for another wire

      Delete
    3. Do you have space in your enclosure to add one more column to the board? Then you'd have an extra hole on the 9v strip...

      Delete
    4. That would have been smart, I could have put the resistor on the board too, but I already cut the vero board to size. Can I just have two wires soldered in the same hole, so one goes to the LED and the other goes to the DC Jack but they are coming from the same hole?

      Delete
    5. Sure thing, if it's easier for you to take two wires from one vero hole than to take two wires from the dc jack. It's all the same 9V.
      Now at least you know what to consider on your next build. :)

      Or, since you already cut your board, you can be creative and do something like this (pardon my mad Paint skillz):

      https://lh5.googleusercontent.com/-bNBmh1HlXXo/Ueb0xbIhgzI/AAAAAAAAA9c/s8UEGUKJaY4/w504-h705-no/Red+Llama2.jpg

      Move 9V potential to the top row, separate it from the pot, take one wire to led, one wire to previous 9V. I hope I didn't butcher it beyond recognition, I don't have photoshop on this computer.

      Delete
    6. Thanks! Now I know for my next build. I always love finding new ways to take my pedal building to the next level

      Delete
  39. hey guys sorry but probably a stupid question but...i dont have any resistors here to limit the current for my LED until they arrive in the post (im building from the bitsbox kits so i have no extra anything) so i was wondering whether i could continue building pedals and wire the 3pDT switch in true bypass but omit the left hand side lugs of the 3pdt to treat it like a 2pdt and then add the resistor and LED at a later stage whenit arrives?

    ReplyDelete
    Replies
    1. Absolutely. The led circuit in that 3pdt setup is a completely separate circuit and you can put it in at a later time.

      Delete
  40. I want to put two delay circuits in one housing but have a 4SPt switch for one and and a master footswitch for both (a dual delay). Would the switchable boost be the best way to achieve this?

    ReplyDelete
    Replies
    1. 4spt? You mean 4pdt?
      And what's a master footswitch? I'm just trying to picture what it is you want the switches to do...?

      Delete
    2. Have two delay circuits in one enclosure. One master foot switch that engages/disengages both circuits. I would like an on/off toggle for the second delay so it can be set at different delay times and run through the other if i chose or turned off if I wanted a single delay sound...

      I mean I could control it with a mix knob I suppose...

      Delete

    3. Well in that case the third diagram may be what you need. Your "main" delay is the big board and the second delay can be introduced in front of the main delay ("boost" in the schematic). The main board footswitch turns both on/off, the left switch turns the second one on/off when needed.
      If you don't need led(s) you can get by with only dpdt switches.

      Delete
  41. Thank you, great guide! I have two major newbie questions though:

    First off, I'm using these:

    http://www.circuitsathome.com/wp/wp-content/uploads/2012/02/dc_jack.jpg

    I really don't understand what to do with the pins. I get that one of the pins is the V in, another is ground and the third one is to accomodate for a battery, right? But which is which? :(

    Second question: Do all pots have to be grounded? If so, where would the ground connection go? On the back of the shaft? (the smooth side that states the nature of the pot).

    Thanks in advance, I love this site.

    ReplyDelete
  42. Had an idea to clean up my builds in general, and a double pedal idea I'm working on specifically, and wanted to get the opinion of more knowledgeable people than myself. Seems simple enough, but...
    http://i1293.photobucket.com/albums/b594/visionoise/Double%20Eleventy-One/power-supply-idea-01_zpsbee68fcf.jpg

    ReplyDelete
    Replies
    1. My "it's too early in the morning to be thinking of these things but here you go anyways" thought is that this may actually produce even more wires or longer runs, depending on your board design.

      Delete
    2. Point taken. But, would it work? I'm a noob and I'm really asking more for my understanding really.

      Delete
    3. I've actually done/do this. I was making a double pedal and I was running out of places to put the ground. So I thought of doing a "star ground" like I've done in guitars. Then I thought it would be easier if I did this with power too...so I did. Everything worked great and I found it much easier. As for it using more wire, I would say yes it does. But I think it is easier to do a neater job. I'm still very much learning all of this and trying to learn the art of NEATLY boxing an effect.

      That's my 2 cents.

      Delete
  43. Hello, where is the output on the board is it on one of the lugs from the volume pot? I get no sound from any build from this site, please let me know, thanks!

    ReplyDelete
    Replies
    1. it varies from board to board. sometimes it's a volume pot lug, sometimes it's taken from the board.
      Even completely disregarding these offboard wiring diagrams, if you connect your in/out jacks and dc power you should have the effect working. If they are not, you've made a mistake someplace.
      Do you have a particular build that's not working that we could take a look at?

      Delete
  44. Hi I've just added the volume daughter board to my EP booster build, but I'd like to have it on a toggle switch so that I can have it completely out of the circuit when I don't need it. Which switch should I use, and how should I wire it? I'm assuming that it should be a SPDT or something like that. Anyway thanks for any advice and thanks for a great site.

    ReplyDelete
    Replies
    1. The third diagram on top of this page should be what you're looking for. Booster board on that diagram is your volume board.

      Delete
    2. Oh yeh that'll work, thanks for pointing it out :)

      Delete
  45. Have a very good Switches and Sockets blog which is really interesting and knowledgeable. I really appreciate you for this good work keeps it up. You can also find a very good blog at Switches and Sockets by Meteor Electrical.

    ReplyDelete
  46. Which lug is which on the DC jack? I've been using the Beavis diagram for offboard wiring. Is there anyway to get more visual for me?

    ReplyDelete
    Replies
    1. It depends, really... which dc jack are you using? is it switching or nonswitching?

      Delete
  47. I don't know if anyone's thought of this, but why can't you use a 4PDT switch and the battery disconnect go to that instead of the input jack ring? So if you're using a battery it's only on when the effect is on. Would it create a popping noise?

    ReplyDelete
    Replies
    1. You'll almost certainly get a pop unless you could get a switch where the battery contact makes slightly before the audio contacts ("late break/early make" which I've never seen in a stomp switch). And you may also get a slight delay with some circuits before they come on.

      Delete
  48. I think that there is mistake.
    http://2.bp.blogspot.com/-J3EhMIZQLck/UH6a8ZnzSFI/AAAAAAAADHE/ewTfTXuvTYA/s1600/!Offboard+Wiring+with+switchable+pre-effect+booster.png

    LED - goes to 2k2 and + to switch?

    ReplyDelete
  49. Mark, can you do me a favor and add to the offboard section a daughterboard that I can use to replace a capacitor on the main board? I'm picturing a "variable capacitor circuit daughterboard". I have found some schematics that show a pair of capacitors (one high value, one low value) added to a potentiometer to effectively do this, but I can't schematic to real word wiring (noob). Would it just be input from board to lug 1 and output to board from lug 3, and then just jumper lug 1 and 2 with Cap-A and jumper lug 2 and 3 with Cap-B?

    I have an old DOD envelope filter and I have located the cap that controls the decay. I could just swap the cap out. But I want to add a control pot to it. The existing cap is 10uF, which is a really fast decay. I've heard recommended 22uF. But a pot would be the best!

    Anyway, I can imagine making up a bunch of these "daughterboards with a pot" to have ready to drop into capacitor sockets when experimenting.

    ReplyDelete
  50. No, wait, I think it would be:

    Input from board to Lug 1, output to board from Lug 2. put the caps in like I said , between lug 1 and lug 2, and the other between lug 2 and lug 3. And lastly, jumper lug 1 and lug 3 together.

    Is that right?

    ReplyDelete
  51. Variable Capacitor...OK---I think I have this right, I drew it up this morning (see link below). I am going to make this socketed daughterboard with a pot. The only thing I am unclear on is how big the pot should be, or if it even matters. Also, I have read that there is a limit to the "smallness" of capacitors that this will work for, because the wiring itself will dwarf the capacitance. If anyone would mind taking a look at this and providing comments, I'd much appreciate it!

    http://tinypic.com/r/xfceb8/5

    [IMG]http://i43.tinypic.com/xfceb8.jpg[/IMG]

    ReplyDelete
  52. Grrrrr....that image got shrunk. Try this:

    http://tinypic.com/r/2kj6u1/5

    ReplyDelete
  53. OK, I built it, and it served it's purpose very well! I started with 10uF on the constant side and 30uF on the pot side. I determined that I liked the sound somewhere around 25uF. So I added another 10uF to the constant side (20uF total) and only put 10uF on the pot side. for fine tuning. Dialed it in around a 6. So I would like to be ordering up a 26 uF Capacitor. SO I guess I'll settle for a 22uF. Or put a 4.4uF in parallel with it.

    I then moved on to the smaller caps. 0.01uF is the stock value. I liked it around 0.024. But if I understand correctly, I need to dial it back a bit to account for the losses for these smaller values. I'll probably just install a 0.02uF, which, not coincidentally, is what I read was a common mod for the DOD fx25 caps.

    Mistake: Lug 1 should read Lug 3 to make the knob intuitive; clockwise to add capacitance.

    ReplyDelete
  54. Hi, I recently finished my first build, when I plug in I get a very loud static sound and nothing else, I think my board is fine, the problem is that I couldn't get ahold of a footswitch with nine points on it, mine has six. (I live in South Africa) So I tried to re-design the off board wiring, I am pretty sure that is my problem. Is there a correct way to do this? Is it even possible ?

    ReplyDelete
  55. Hi people, This is my first time making this vero, the pedal its self EM Drive works and I'm very satisfied but the led is always on and I get the sound only when the switch is pressed. I think I'm messing up somewhere but I don't know where...I have changed 3 BS170 and it's the same Please help. I have this switch http://www.taydaelectronics.com/dpdt-compact-stomp-foot-pedal-switch-momentary.html

    ReplyDelete
    Replies
    1. When the switch is constantly pressed I have sound but the led stays on...On the dpdt switch there are some numbers 1,2,3...

      Delete
    2. HI gogiche what you need is a 3pdt switch like
      http://www.taydaelectronics.com/3pdt-stomp-foot-pedal-switch.html

      The one you are currently using is a momentary one and will not work.

      Delete
  56. More help needed. Somehow I now it works but when it's not pressed the led is shinning and there is no sound- like its off...and when i press and hold the switch then the led goes off and the pedal works. If I release the switch it goes off again... :((( hat to do what to doooo...bad switches or what's the problem.....:((((

    ReplyDelete
  57. Yes, I don't know the difference between momentary and lacking or what was it's name...the thing is that Im trying to incorporate Milenium bypass vero that uses DPDT switch so that I can escape the popping of the led. The vero works well now but the momentary switch has to be pressed and held down so that effect work. Otherwise the effect is off and the led is shining. My point is- Is that a bad switch because the characteristics of the switch are ON/ON momentary DPDT switch or it has to be connected differently???

    ReplyDelete
  58. It's not a bad switch it's just the wrong type of switch. A momentary switch only works while it is pressed, when you release the switch it goes off again. A latching switch ( which is the type you need ) goes on when you press it and doesn't go off until you press it again.

    ReplyDelete
    Replies
    1. Thanks mate, now I'm enlighten but with 6 bucks less in my pocket :) I'll by the other type and I think it will be fine...the bad thing is that I'll have to wait for two weeks :((( THANK YOU!

      Delete
  59. Okay, i've got a couple questions. Are you just using two mono jacks because there are only two lugs (or whatever their called) on each jack? Where's the third lug on the DC jack? All of the other wiring diagrams i've seen (like the ones at generalguitargadgets) seem to have two grounds coming off of the board. How would I use one of these with one the vero layouts here, which tend to have one ground off of the board?
    Thanks in advance!

    ReplyDelete
    Replies
    1. I think I figured it out. The second ground shown in a lot of other diagrams comes from one of the pots in your vero layouts and goes to the sleeve of the input jack?

      Delete
    2. number of grounds coming off the board depends on the design of the circuit. Also, ALL grounds are connected together

      Why would thee be a 3rd lug on the DC jack? live and neutral is all you need baby. If the one you ordered has 3, plug it in and test the voltage, live - neutral would have ~9V , more than likely the 3rd lug connects nowhere and would have no voltage when you test it. its a 'spare' of sorts

      Delete
    3. 3rd lug on a DC jack connects the battery snaps positive wire for any negative ground effect. I always use to pretty much follow this diagram when I first started making pedals...
      http://www.madbeanpedals.com/tutorials/downloads/StandardWiring_MBP.pdf

      Delete
  60. Hello, I am trying to build the gaspedal dumbbell pedal with the dual effects offboard wiring diagram. this is my first pedal so I'm a tad nervous about it. but in the diagram it shows each pot going to a vero board so here's the question. are these separate boards from the main board or are they the same or different boards entirely because I see a ground and a hot wire connecting the two together so I'm a bit confused. any help at all would be greatly appreciated. thanks.

    ReplyDelete
    Replies
    1. they are the vero boards of the two effects you are linking, its just a simple way to share power and as all points of ground need to be connected its simple to do it this way, you could always ground the second board to another point in the ground chain so long as both boards you have made are grounded and have power, just follow the diagram and you'll be fine

      Delete
    2. Ok that makes sense, what about the pre-boost diagram boost out boost in?

      Delete
  61. I have another question. sorry if this is nubular but on the boost and normal diagram where it says on the boost out and boost in where do those wires connect?

    ReplyDelete
  62. Wired up the gaspedal and nothing works. not even sure where to start trouble shooting. lol

    ReplyDelete
  63. I've rewired this dumbbell up 3 times and still nothing works. Knifed between the strips several times, troubleshot the board and as far as a noob can tell it works fine using my multimeter. so assuming it's offboard. just took everything out of enclosure and wired it again still nothing. regular stomp turns led on/off, boost led doesn't do anything although I hear a popping sound when turning both on and a slight hissing sound when both are on. no sound comes through in all bypass mode so I have no idea what to do. anyone plz help. thanks.

    ReplyDelete
    Replies
    1. I'm confused Kody. Are you building the dumbbell as a single effect now? Or are you still putting in a dual effect box with some other effect. or with a booster circuit? For a first project, you may be going a little too complicated. I'll bet you have a pretty high IQ, because this stuff on paper looks like childsplay so you jumped right into an ambitious project. That's how I was. But I haven't have anything fire up the first time yet. Still waiting for that buzz. But experience teaches you things that even the brightest mind can't get, even from apparent complete understanding. I can build a puzzle. Fast. But this new hobby is more than just a puzzle, as I am finding out.

      So, you might want to wire this up as a single like in the very top diagram. So here is what I have gained in my fist few projects that I think are particularly helpful to noobs like us:

      1. Do you want to install a battery clip? If yes, then follow this link:
      http://www.beavisaudio.com/techpages/StompboxWiring/

      If no, then use Mark's diagram at the VERY top of the page.

      After you get some experience, you can use the battery clip version from that Beavis link combined with Mark's switching method that grounds the board on bypass (again, at the VERY top of this page). That's what I did with my Arctic White Fuzz.

      2. Gain a full understanding, with parts in hand and an ohm-meter, of the DC jack power source switching. When a 9V plug is inserted, it disconnects the ground wire coming from the battery. So your battery is off if you have an external power plugged in. You know this from your store bought pedals. But wiring it takes some thought! Use your meter to check the lugs for continuity before you soldier anything. Experience! It's better than just following the diagram.

      3. Gain a full understanding, with parts in hand, of the Stereo Input Jack "ground switching" to control on/off. If wired correctly, the mono guitar plug inserted into the stereo input jack connects the ground to the power supply. Without the plug inserted, the ground is disconnected, and your pedal is off. You know this. But wiring it takes some thought! This switch doesn't care whether the power is from battery or plug, because THAT switch is upstream of this switch. Plus, it is only the ground that is getting broken.

      4. Try wiring the board up with alligator clips and a battery wired directly to the board. This takes a lot of the potential wiring problems out of the troubleshooting equation. I wish I had done that. I fried a stompswitch from too much heat and I knew it, but was too stubborn to admit it. So I trouble shot the whole board to avoid having to de-solder the stomp and put a new one in. Denial never fixes anything!

      Good luck!

      Delete
    2. Ooops, correction on my item #2 above: The DC plug disconnects the +9v lead from the battery, not the ground.

      Delete
    3. I was mistaken the first time when looking at the offboard wiring page. I'm building the booster. I originally saw the two switches without reading what the names were closely. my bad. and thank you so much. I don't have any room inside the chassis to fit a battery. but I have voodoo lab power supply mounted under my board so I'm good there. that's a great idea just trying to wire it up as single first. never woulda thought of that! makes me feel better to know that I'm not the only one who can't get it right the first couple of times. I have another inquiry. on the gaspedal dumbbell schematic how there are the 11 cuts I cut them backwards cuz the copper strips are on the bottom from where you put all the components through so I basically have the whole board wired up backwards. I noticed this a few days ago so I took the ic off and turned the board over and soldered it to the strips themselves so pin 1 is still going straight to the diodes and pin 4 is ground and pin 8 is power so everything should be wired correctly respective to where is should be. but to avoid complications should I make another Vero or do you think it's fine as is?

      Delete
    4. How would I just wire up one effect since the board is made for a boost and od? Would I just wire up the boost?

      Delete
  64. Since you have the IC flipped proper, I don't think it will be a problem. Just make sure you get the diodes polarity correct. You basically have to work outward from the IC instead of from "left to right" like reading.

    If I were you at this point, I'd download a free copy of XNVIEW and use the mirror function to print it out flipped. You will use the flipped version for the rest of the build. (I do this for every project first, before I start cutting the copper. I mark the board for cuts from that, and then use the normal view to place components. Some of Mark and Miro's layouts here show a flipped version, but not all)

    I use a red sharpie marker to mark the copper. Then I flip it over and poke a resistor through the cuts and mark the other side as well. This side should then match the layout. That's like a little check. Checks and balances. Then I place all of my components "relative" to where the cuts are. Some people number and letter the rows and columns. I don't like that, because if you get off, you won't know it. Everything for me is relative to each other. "two up and 1 over, straddle 3 holes downward." Stuff like that. work your way around the board and if there is an error gap when you get back to some previously placed component, you have a problem. Again, checks and balances.

    Another issue with soldering direct to the board, make sure your connections are good. A dodgy connection on an IC will drop the output 90% for sure.

    ReplyDelete
  65. Oh, I just looked at the vero. It has the second switch already planned in it. So you are going to basically wire it up as a single effect (top of this page) and then follow the instructions in the gaspedal layout for adding the 2nd switch and 2nd LED. That layout has the resistor for LED 1 already on the board, so you can ignore that 2k2 the offboard layout above.

    Like I said, this one is a little confusing for a first build. Without a battery option, you made it a little easier, anyway.

    Tip: See above where it has a DC box, and a 2.2 resistor into an LED and going to the stomp switch? That DC is already on your board. So is the resistor. so LED1+ goes to that spot on your board, and LED1- goes to the stomp switch as shown above.

    LED2+ has nothing to do with the Offboard general instructions above. Neither does the extra stomp switch. They are covered in the Dumbbell layout.

    ReplyDelete
    Replies
    1. Mono321 you totally just opened my eyes! I see it now (or at least I think I do). I never woulda saw that especially for a first build. thank you sooo much!

      Delete
    2. Mojo! Dumb auto correct! Pfft

      Delete
    3. I have another question. would I need to connect pins 2, 3 and 6 and 4 and 9 on the second switch included on the board?

      Delete
  66. No! Just connect 1 to 4. That way you only need 1 wire from the board where it says "Sw1 & SW4"

    ReplyDelete
  67. No, just connect 1 & 4. Run one wire from your boards "Sw1 & Sw4" spot to either 1 or 4.

    ReplyDelete
  68. (uhhg...sorry about the multiple posts....my phone wouldn't update the page)

    ReplyDelete
    Replies
    1. No worries bro! Thanks for the tip! Good news and bad news! Good news is now the LEDs look normal before they were blindingly bright to where they were discolored and in bypass mode I can play and signal goes through and when I push boost down I can still play but no.change in sound that I can hear yet. when I push bypass the signal cuts off. been troubleshooting and discovered most of my pin connections were dodgy so I soldered those again and they now (from what I can tell) have proper voltage running to them. still not much changes from before although the boost sounds a little better. just for confirmation on polarity issues side of capacitor with negative side or rectangle side goes to ground. clipping diodes the side with black ring is negative correct? I'm not sure what else it could be unless I have a bum part somewhere.

      Delete
    2. I could have a piece of solder bridging somewhere along the strip. seems unlikely but I'll run a knife along it again just to make sure. up at very top single effect offboard (the one I'm working off of now) has ground up at top left, 9v at top right, input bottom left and output bottom right. I wired it up that way on the dumbbell board but that puts input and ground together. that's right....right?

      Delete
  69. Is it possible I damaged the ic by soldering it, then de-soldering it, then soldering it again? Should I have used a dip or dil? And would it matter if it was a ne5532 (A,D,P,etc) or just ne5532 For the dumbbell? Sorry for all the questions, I just got a new job so I haven't had amy time to work on it lately.

    ReplyDelete
  70. Yeah, ALWAYS use a socket for IC's. Unless you are mass producing 500 pedals. LOL. Very possible that you killed it. the letters at the end won't matter in terms of if it works or not. Some say they can hear a difference in tone, but I can't.

    ReplyDelete
  71. I'm planning on using the 5mm ultra bright blue resistor from bitsbox for a tubescreamer build. What kind of current limiting resistor will I need? Is 2k2 good or not?

    ReplyDelete
  72. My feeling is that 2k2 is just not enough resistance. I can't even read the knobs it is so bright shining in my eyes! And I am using 3mm LEDs. I have liked 4k7. I have also heard of people using a trimmer for the LED. haha I think I am going to put a trimmer on the breadboard to dial each color in and just get the value using the ohm-meter. Write it down and label each bag.

    ReplyDelete
  73. What about an order toggle switch in the dual offboard wiring to change the order in which pedal comes first? I'm semi new the game. Anyone help?

    ReplyDelete
  74. Which way do you think is best for dpdt switch with led?
    http://tinypic.com/r/15cg5jr/8
    or
    http://www.mylespaul.com/forums/members/ehamady6-albums-ehamady6-album-picture40285-wah-led-wiring-diagram.jpg
    or
    http://www.singlecoil.com/tb-strip/dia5.html

    In the second one the effect input is allways wired to input jack. What will that do?

    ReplyDelete
  75. What is "D1" in the top picture next to the 2K2 resistor? Thanks!

    ReplyDelete
    Replies
    1. The indication LED of your choice.

      Delete
  76. Can someone please help me? Is it possible to use a foot switch to switch between two gain/volume setups with LEDs? I want to build the Tech21 XXL with two channels.

    ReplyDelete
    Replies
    1. Two separate gain controls would be easy enough. You could do it with a DPDT stomp with the following lug connections:

      1----4
      2----5
      3----6

      1 - Drive pot 1 lug 3
      2 - Drive 3 connection on board
      3 - Drive pot 2 lug 3
      4 - Drive pot 1 LED cathode
      5 - 2K2 resistor to Ground
      6 - Drive pot 2 LED cathode

      The LED anodes to be connected to 9V.
      Lugs 1 and 2 of both Drive pots will go to the Drive1&2/Tone 3 connection on the board.

      So with one stomp, one Drive pot and LED are in circuit, with the second stomp the second Drive pot and LED are in circuit.

      Doing this with two volume pots is a little more complicated because you would really need two poles for the volume pots. One for volume pots lug 3 and one for volume pots lug 2. Only doing one lug like with the gain pot will cause problems because part of the other volume pot would still be in circuit with an active path to ground which will variably affect the resistance of the pot you want in circuit.

      So you could do it, but you'd need a separate 3PDT stomp just to do the volume pot with LED indication.

      Delete
    2. I think i got it now... I need one pole for the tone, two for the volume and one for the LEDs. You just need to type "yes" if I'm correct!

      Delete
    3. And thanks for the quick reply by the way! You really got me back on track!

      Delete
    4. Yes


      as long as you meant Drive instead of tone :o)

      Delete
    5. I think I just figured out a way of doing this with a 3pdt. By switching the LED and Volume 1 on the same pole. I don't know if this will result in any "poppin'". But it's worth a try.

      Delete
    6. You don't need to switch the Volume 1 connections, they can both always be grounded. In fact if you switch them you run more of a risk of introducing noise if the ground connection makes slightly later in the stomp switching than the signal input at Volume 3.

      Delete
  77. I was wondering how this looks on a board like the Devi Ever OK with no IN/OUT on the board. What do I do with the Input/Outputs that attach from the 3PDT switch to the board? I'm used to them being on the board, and this build has control 2 to input jack and volume 2 to output jack.

    Currently I have left lugs 3 and 5 on the switch empty and I am getting very strange results when bypassed:

    when V and C are turned completely CCW, the effect seems to be on
    when I sweep V and C to center the signal is unaffected, but there is sound
    when V and C are fully clockwise it acts much like when they are fully CCW

    When I hit the switch again, I hear the dreaded, regular ghost clicking of "you did something wrong this time". (this is my thought, but I'm actually unsure whether the former observations are bypassed or "on" and vice versa... however I've heard that clicking before and that's usually when the effect should be on. This indicates that my wiring is VERY funky right now, if the pots are affecting the "bypassed" signal... oowee)

    ReplyDelete
    Replies
    1. If you don't see the input and output on the board, then you'll see a description of how they are attached in the notes of the layout, as you'll see at the bottom of the OK layout.

      Delete
  78. Just to confirm, the notes say where they attach on the switch, not to the tips of the jacks (my initial thought)? I.e. control 2 to center lug and volume 2 to upper right lug, per wiring diagram?

    ReplyDelete
    Replies
    1. The tips of the jacks don't attach to the board except in very uncommon circumstances, like when the effect has a built in bypass buffer like the recent Buf V layout and when that is the case, again it will always be mentioned specificially in the layout and/or in the main post.

      For all other layouts the socket tips connect to the switch on the lugs shown in the offboard layout above. Then the board input and output wires go to where you are instructed in the layout. Either an input and output connection directly on the board, or in the case of the OK, Control lug 2 and Volume lug 2, because you have pots before and after the main board.

      Delete
  79. Hi there,
    I am trying to finish my first pedal project.
    I'm trying to make the one knob fuzz but it does not have an output sign of where should i solder on the board?
    http://tagboardeffects.blogspot.hk/2013/04/1-knob-fuzz-bonanza.html

    Please help! Cheers!!

    ReplyDelete
    Replies
    1. If you check out the notes on the layout it tells you there that volume 2 lug goes to the output, and so that will connect to the stomp switch

      Delete
  80. Hi,
    I`m completing the zendrive,but according to the offboard instructions i can`t find the output.Where is it?The schematic doesn`t say output anywhere only input

    ReplyDelete
    Replies
    1. Boukman

      If you're looking at the Zendrive layout, output is from lug 2 of volume pot. A lot of the pedals here follow that convention, so you will see it often. It also mentions that in the notes below the layouts if that is the case.

      Delete
    2. Great!Thanks!I must be blind!!!:-)

      Delete
  81. Question about say a merkin fuzz layout put on this configuration. The inputs and grounds are in different locations. Would following this diagram work? Also I have a weird problem. Using a 9v adapter at 1.7amps makes the led work but no effect. Using a 9v adapter at 1amp makes the effect work but no led. Is this common? Why does this happen? Thanks

    ReplyDelete
    Replies
    1. The graphic is a visual representation of any circuit, the switch and offboard wiring are the important things. As long as input, output, 9V and all grounds are connected in the correct places as per the effect layout, then it will work fine for all effects on this site, other than the ones with specific wiring of the stomp like buffered bypass effects, but they are always mentioned in the layouts.

      Delete
  82. For the Dual Effect Example, I was thinking of trying to use a single RGB LED, with four legs and common cathode. One switch would turn it red, the other switch green, and both switches turned on together would turn it blue. Is it possible?

    I imagine it would need a relay or something, maybe?

    ReplyDelete
    Replies
    1. You'll want the LED to have common anode. That way you can have the anode at +V and two cathodes for separate switches. If both of the circuits were positive ground fuzz faces or similar, the you could use the one with common cathode.
      +m

      Delete
    2. Thanks. I don't mind which the common is, I haven't ordered it yet, so I will just buy whatever will work. I just need to find out how to make the idea work.

      Delete
    3. Well. It works just like i said. I've done it myself a few times. Think of the three cathodes as separate LEDs. But instead of three different anodes you have only one. So one resistor from the supply to the anode - then the two chosen cathodes to each stomp switches lug number one. In some cases i have needed to add another resistor between the cathode and that lug for some colors, as the brightness isn't even on all three. Other option is to feed the +9V straight to the anode and use suitable resistors between cathodes and switches.
      +m

      Delete
    4. I have a feeling I am being particularly dim here and not seeing something obvious. So, say green cathode goes to lug one of switch 1 and red goes to switch 2. Where does the blue cathode go?

      Delete
    5. With other trash to the landfill :) I does not need to be connected. In fact i've snipped the unused leg off completely for the color i'm not using.
      +m

      Delete
  83. Ah, no, the point is that I want to use it. I want the red to work with one switch, green with the other, but if both are on I want the blue to glow instead.

    ReplyDelete
    Replies
    1. Oh. That won't be simple. For that you'll need to construct a whole circuit that "knows" which stomp is activated and make decision for the LED based on that. This may be a good read: http://www.technologystudent.com/elec1/dig5.htm
      But anything like that won't be simple or easy to do. Couldn't find any example circuits either...

      However - if you do that the way i proposed, you'll have both, red and green lit at the same time when both effects are on.
      +m

      Delete
    2. I was lying in bed this morning when the idea popped into my head. I lay there, wooly headed, trying to think how I could make it work. I put my frustration down to having just woken up. But the more I thought about it as the day went on, and all the Googling coming up short, I started to realise it might be a bit more difficult than I first imagined.

      I had been hoping that it might be possible with relays or something, but because I will have two pedals in one enclosure, it's going to be a bit of a tight squeeze as it is, an extra circuit just ain't gonna fit. So I have started thinking about just using two colours, like you said, red and blue, that way it will turn purple when both effects are on, I think...

      Delete
    3. You got me a bit interested, so i went on to read more about logic gate examples. CD4081B has four gates, which means eight inputs. Some Boolean algebra is needed to create a circuit that would do that. That'll mean a circuit at least a size of Red Llama :) And i'm not sure if the outputs are enough to actually connect the LEDs. If not, then that configuration will need three relays to take care of the connections.
      I could be wrong about my assumptions after reading a few examples. Nevertheless, it won't be quick and simple to achieve...

      So anyway. I think you'd be better off by just using the switches to do simple mechanic LED connections.
      +m

      Delete
    4. Thanks for your help. I have looked into it a bit more and given the idea up. I haven't used logic gates since I was in college, 22 years ago, and I seem to have forgotten more than I ever actually knew in the first place.

      I am going to have more difficulty getting everything in there as it is, certainly no room for another board. And I have decided to add a toggle switch for order switching, too, which will just about fit because I am only going to use one LED. I'll be doing what you suggested, using just the two colours, red and blue, that way it will turn purple when both are on, and I like purple.

      Again, thank you for your help.

      Delete
