Sunn Beta Preamp

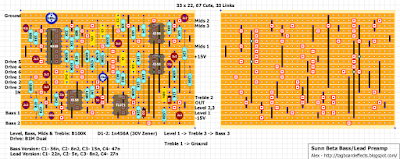

This is a single channel version of Sunn Beta Bass & Lead Preamps.
You can find the original FSB thread here.
There are two different sets of caps depending on which version you want to build.



You could use Mark's Bipolar Voltage Converter if you want:
http://tagboardeffects.blogspot.fr/2014/01/bipolar-voltage-converter.html

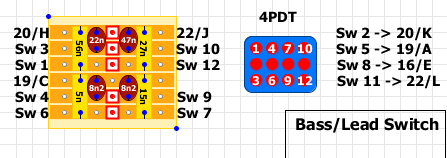

You could also use this external board to wire a Bass/Lead Switch instead of using fixed caps:

(20/H, 19/C, 22/J.. are board's points coordinates where C1-4 should be placed)

If you want to build the original A/B Channels version just build 2 identical circuits and connect their outputs to the daughterboad below

128 comments:

  1. Replies
    1. Can I just check your wiring for the dual gang pot - I'm assuming it's as follows:

      123
      456

      With the lugs facing me and the shaft upwards.

      Ineed to buy vero - a LOT more vero!

      Delete
    2. Hi Beaker!
      That's correct.

      Delete
    3. This layout has my shaft pointing upwards too Beaker.

      Nice layout Alex!

      Delete
  2. Yessss! There's no way I'm not building one of these. Thanks for the layout!

    ReplyDelete
  3. If I wanted to do a version with both which switch to use to be able to switch between bass or lead version?

    ReplyDelete
  4. Since you're switching 4 caps at once, you will need a 4PDT on on

    The caps are going to need to be "flying" offboard

    ReplyDelete
  5. I built this based off of the vero from the fs thread a few weeks ago. It could be my build, but the way the volume control is wired, it doesn't lower or raise the volume, just change the texture of the sound slightly. Other than that, it sounds amazing!

    ReplyDelete
    Replies
    1. How is it the volume level at the moment?
      Too loud? Too quite? Unity?

      Delete
    2. It depends on where the gain is set. Less = quieter, more = louder, with more or less gain as well. Might be worth it for someone to experiment with having the dual pot split, as mentioned below.

      Delete
  6. interesting. what happens if i seperate the dual pot to 2 pots?

    ReplyDelete
    Replies
    1. i mean somewhere at the dba interstellar overdriver, what is also uses a dual gang pot that if it seperated into two it gives different kind of overdrive tones

      Delete
    2. hi shvtsvcka. I am going to use 2 1Meg pots. I separated the dual gang pots on several builds on this site into two equal value pots and it worked fine. that's not to say this one will work.(I'll let you know) just remember that a dual pot intends that one value increases as the other decreases.

      Delete
  7. When they say you have to be careful when working on amps, is this one of those situations or is it just like any other stompbox. Nervous beginner here....

    ReplyDelete
    Replies
    1. It's a stombox emulation of a Sunn preamp, so treat it just like any other pedal. It only has +/- 15 volts across it, so no risk of hurting yourself. The same applies to all the other amp circuits on here. if they are battery or wall wart powered, you don't need to worry.

      It's mains voltage amps where you have to be careful with what you are doing. The internal voltages in these can exceed 400 Volts, so one wrong move could potentially prove fatal.

      Delete
    2. That's what I suspected but I wanted to make sure. Thanks Beaker

      Delete
    3. just to add, i don't think we're going to see any full on amp layouts posted here for a few reasons. i've actually have a few done for some tube amps, but i've decided to not post them.

      Delete
    4. I agree Zach.
      For Amps I would go for a PCB too.

      Delete
    5. oh i didn't make any PCB for the amp layouts, they're all old school point-to-point turretboard. i really like the way turretboard amps look, just super neat, and you get to use super mojo parts for better sound. :P

      my issues are more about people really not ready for tackling something like it doing it and getting hurt or if it doesn't work not being able to troubleshoot it and wasting all the money on parts. that and there are some that i don't feel should have access to them, as they may use them in a way i don't approve of, if you know what i mean.

      Delete
    6. Agreed, turretboard is the only way to go for a robust amp build, with any real hope of repairing it should any part fail in the future.

      Delete
    7. go to tube depot. I built the 18 watt Marshall head and it is fantastic and really fun to build. drives a 4x12 perfectly for small to medium bars/clubs.

      Delete
  8. Will a 1N60p, 45watt germanium diode work in place of the 456A?

    ReplyDelete
  9. Can 1N456As be replaced with other 30V zeners?

    ReplyDelete
    Replies
    1. Does anyone have an answer for this? I was about to ask the same thing as I'm having a huge amount of trouble sourcing the 1N456A's.

      Delete
    2. No one knows the answer? :(

      Delete
  10. Does anyone know if I could theoretically run this into the effects return of my amp, bypassing my amps preamp? And taking this further could I buy a slave amp and just use that? Say, this circuit into a Sunn beta slave. Would that work like a Sunn beta without the two channels. Or is there something else between pre amp and power amp usually?

    ReplyDelete
    Replies
    1. You should be able to run it into your effects return or poweramp. Depending on your amp, you may have to control your master volume from the pedal.

      Delete
    2. Wondering the same thing. I suppose it depends on how hot the signal is coming out of this preamp. I would like to run it into a Crown XLS power amp. A friend tried running his Tonebone bassbone into the Crown, but the the pedal is really meant to run into the front of a preamp as more of an effect rather than a true preamp outputting line level. The amp's input sensitivity is too high to drive it to full output with the Tonebone. Wondering if it would be a similar situation with this preamp, or if it can be adjusted to output a full on line level signal if it isn't already.

      Delete
    3. Just my $0.02, but anything distortion, fuzz, or overdrive I would not put into the effects loop of any amp, as the results are usually crap sound. The reason being that distortion, fuzz, and OD is supposed to emulate the preamp tubes being pushed into harmonic distortion, and using these sorts of pedals affects your preamp as well adding texture. If you put them in your effects loop you're bypassing the preamp tubes and going directly to the power tubes, which defeats the pedals purpose.

      The effects loop is really meant and great for modulation effects like chorus, phaser, trem, and delay. This helps keep them clear and from being slammed by pedals in front of them.

      If you're using an amp simulation pedal like this, it's best used as a preamp. So you want to put your amps eq into the neutral position, and use the eq on the amp pedal. Catalinbread likes to call these foundation pedals, since the idea is they replace your amps preamp, and will behave as such. So if you put an OD in front of this it should behave like a real sunn beta.

      Delete
    4. Disagree with Zach here. The Catalinbread pedals are designed as pedals and intended to work with an existing preamp. If this is an accurate copy of the Beta preamp, then it's more akin to something like the Tech 21 amp sim pedals, which are generally intended to be run into a clean power amp or PA, and the documenation for them recommends using the FX return to bypass the preamp when used with a normal amp. Unless there's an issue with the output level of this pedal, it should definitely be run in a way that bypasses your amp's preamp section. Also, ideally into a solid state power section, as that's what the Betas were to begin with.

      Delete
  11. Hello fellas!
    Anyone can explain please how to releaze switch between Bass and Lead caps?
    As I understand, 4PDT switch will not be enough for the four different capacitors.

    ReplyDelete
    Replies
    1. The only way to do it mechanically on a single switch would be with an 8-pole. They do exist, but they're really expensive and difficult to find. The most elegant solution would be to make up a daughterboard with 4 double-pole relays, that way you could activate them from a single switch, even a stomp. This would eat up a lot of internal space though, I don't think you'd get everything in a 1590BB.

      The simplest option is just to use multiple switches, either two 4P3Ts or four DPDTs. I'm gonna go with the DPDTs, It'll be a bit clunky, but I can't really see wanting to switch between bass and lead on the fly.

      Delete
    2. You have built it already? Its fully workin' vero?

      Delete
  12. You can do it with a single 4PDT and no daughter board. It will require some flying connections

    ReplyDelete
  13. It's a bit complicated to explain with text. I'll have to make a diagram when I get home later.

    Until then, think about how you can switch between two caps with one SPDT, and then do that 4 times for the 4PDT

    ReplyDelete
  14. This is how you can wire the 4PDT, and switch between the 8 capacitors in same time.
    https://dl.dropboxusercontent.com/u/8372380/4pdt.jpeg

    ReplyDelete
  15. Ahh of course, brain's a bit foggy today, I've never used an SPDT for this kind of component switching so it didn't really occur to me, the extra wire and floating side of the cap always bugged. It's doable but it'd be very messy, I'm sure someone can make it look neat, but I think I'll stick with the 4 DPDTs.

    ReplyDelete
  16. Thanx for the advices guys!

    ReplyDelete
  17. Built it! Had a false start wiring lugs 4 and 6 the wrong way round on the drive pot. I also had to use the voltage converter on the rusty box layout to get the voltage to -15/+15. Once I'd sorted it though....

    I've never played a sunn beta so I can't say for sure but it sounds pretty good to me.

    Thanks for the layouts

    ReplyDelete
  18. Thanks for verifying it!
    I've added an extra board for the Bass/Lead Switch.

    ReplyDelete
    Replies
    1. Thanks Alex. Just to confirm, if using the Lead/Bass daughter board and switch, C1 - C4 should be ommitted (or removed) from the main board?

      Delete
  19. The board/switch subs those caps.
    Both sets of C1-4s will be on the daughter-board.
    The 4PDT will switch between set 1(Bass) and set 2(Lead).

    ReplyDelete
    Replies
    1. That's what I thought, but just wanted to make sure!

      Delete
  20. Better safe than sorry!
    Hope it works well.

    ReplyDelete
  21. Would anyone be willing to upload some sounds or videos with sounds of their builds of this circuit? I've been falling in love with the Sunn sounds lately and am contemplating either buying or building a 70's- era Model T (original or clone), or something similar, but haven't bit the bullet yet.. I'm wondering if this would be able to get me into that territory or at least somewhat close.

    Thanks for all your efforts and feedback so far on this one.. great!

    ReplyDelete
  22. Does this build require building 3 'little' boards. One for 9v >18v+. 0ne for 9v>-18v, and then a board for +/-18v into +/-15v?

    ReplyDelete
    Replies
    1. No. There's a link right under the layout which will take you to the daughterboard for power. You could also use the daughterboard from the rusty box, which will give you +15v/-15v rather then +17v/-17v which is the board in the link.

      Delete
  23. I had a Sunn Beta Lead combo about.....35 years ago. If this comes close it is really quite a sound.

    ReplyDelete
  24. hey there,
    i'm having problems getting the 15volt board to work. when i measure the output (aiming for 15v with 1n4001 diodes) i'm not getting any at all. sometimes it goes up to 15, 18 something and immediately to 0v. unfortunatly i think i caused a shortcut when trying to measure the first time (little sparks, ups ;-)
    well so i guess i might have broken something.
    i measured the ic ground to the pins as follows:
    1- 1,14v
    2- 0,85v
    4- 0,25v
    5- 0v
    6- 2,3-2,5v (not steady)
    7- 1,88v
    8- 9,39v
    can you guys read any trouble with the ic from this?
    thanks

    ReplyDelete
  25. I have a noobish question about this build, can someone tell me if this can be used as an Amp to power a 1x12 speaker or 4x12 cab?

    ReplyDelete
    Replies
    1. This is only a PreAmp. You still need a Poweramp.

      Delete
  26. Built and worked a charm first try. I assembled the bass version without the switch and I really like the driven tone for stoner doom sludgy riffs! Works great on guitar too. Things to say:
    1) I had some trouble getting the Voltage Converter to work with 1N4001 diodes (still having +-17 volts readings) so I had to use the Rusty Box trimmer. This seems to be a common problem and common solution.
    2) The volume pot does nothing. It does some nasty noise below 9 o clock, reading on FSB thread this seems to be a common problem also.
    3) I get quite low output, good for using this as a pedal but not for using as a preamp to go in a amp's effects return input.

    ReplyDelete
    Replies
    1. Hello, how did you fix the problem with the volume pot?

      Delete
    2. Mine came out really loud actually. If I use it into my effects return it's actually too loud for bedroom practice. I have to run it into the amps preamp to rein it in a bit. Considering this I would say the problems with your volume pot is causing yours to be quiet. I don't know what to suggest though as mine worked pretty much first time. Maybe check the wiring of your gain dualgang pot as I fudged that up initially and it all sounded a bit off.

      Delete
    3. This comment has been removed by the author.

      Delete
  27. after getting the 15v to work i now struggle on getting the rest to work ;-) the signal cuts out on pin7 of ic2 (first 4558)
    i opened the topic in the following link, where the voltages and a few pics are to be found.

    http://guitar-fx-layouts.42897.x6.nabble.com/Sunn-Beta-Preamp-no-output-on-pin-7-of-the-first-IC-4558-tp31771.html

    it'd be great if you guys could take a look at it and let me know if you can read any false values on the ic's.

    thanks

    ReplyDelete
  28. Any soundclips of pedals anywhere? Mine's still WIP status, missing some components.

    ReplyDelete
  29. Hi everyone,

    Mine's built but not working unfortunately. On power up I get no signal save for occasional crackling/popping through to the speaker when turning the treble pot only. As I take the treble pot down around to 0 I tend to get the popping then and little sparks within the pot itself.

    I've done 3 things but get the same problem...

    1) I retraced every component and found I'd missed the 10u cap in the middle of the board.

    2) I took a Stanley knife to the back and made sure I'd not had an solder bridging rows.

    3) I changed the treble pot (though a quick test on the previous one with a multimeter showed that it was perfectly fine).

    Does the solution to this sound obvious to anyone? I can post pictures if requested. I've built quite a few pedals but am unfortunately a complete noob when it comes to troubleshooting.

    ReplyDelete
    Replies
    1. P.S. I'm doing a +/-15V version using the suggested charge-pump build. It's all on the same vero board but that section is completely separated. Measuring the voltage from battery-in to ground on the preamp itself gives about 15.7V.

      Delete
    2. Sparks in the pot is never a good thing. The row above Treble 3 is a power rail (after the cut under the 12K) Turning the treble pot down will short v+ to ground if you have a solder bridge somewhere here. That explains the sparks when fully CCW. Test for DC on lug 2. Then check for DC on the Level and Bass pots.

      Have a good look with a magnifying glass and test for continuity with a meter. Failing all this, post some hi res pics in the Debugging section of the forum.

      Delete
    3. Thanks very much, Ciaran. It's approaching midnight where I am but I'll give that a crack soon and post results. Failing that I'll get a good image up.

      Delete
    4. Fixed, by the way. Sounds excellent. Cheers. Turns out one of my links was one space out and I managed to cross things out on my schematics too messily to notice until I went back and triple checked things.

      Delete
  30. Guys,

    Since I've fixed mine I've noticed that pushing the level past even halfway completes destroys the sound if I've got the gain turned up past zero. It stops giving me a nice overdriven sound and turns into a complete nightmare of crackles.

    Anybody else have that issue? I sounds beautiful in other situations whether they be totally clean, overdriven or full blown distorted sounds... but there's not way I can crank the gain even a little and have the level go past the halfway point.

    ReplyDelete
  31. This comment has been removed by the author.

    ReplyDelete
  32. Is it emulation of preamplifier or it full value preamplifier that needs to be plugged in a power-amplifier?

    ReplyDelete
    Replies
    1. Not sure what you mean full value preamplifier. This is the preamp section of the sunn model t amp.

      Delete
    2. I meant it, that it will be a full preamp section, but not stompbox giving the alike sounding, as "аcapulco gold". Thanks!

      Delete
    3. Don't know if I've understood correctly but this doesn't emulate the preamp.
      It is its exact copy.
      I've used the original schematic.

      Delete
    4. Splendid! This is exactly what I wanted to know!!!
      Sorry for my english, I'm from Belarus

      Delete
    5. Don-t worry. Your english is good enough.
      Glad we could help!

      Delete
  33. Does anyone have any demo of the finished preamp?

    ReplyDelete
  34. Any real purpose of using tl071 on the output? Does it have same characteristics as 4558?

    ReplyDelete
  35. Any suggestion on how to create the original inputs and master vol that's in the original Befa? Been thinking of building 2 of these and building them in a 19" rack and paiting with a SS poweramp.

    ReplyDelete
    Replies
    1. That is exactly what I'm planning at the moment, so I would also be glad for any answer or hint someone could give about this.

      Delete
    2. If you go on the FSB link in the circuit description you'll find the dual channel schematic with the Master Volume.

      Delete
    3. Oh, thank you. Is this Layout here close enough to the original for me to just take the whole part after the two channel "outputs" in the schematic, one to one?

      Delete
    4. The layout matches the Single channel schematic but the two channels should be identical. You need to add the part between the 2 Outputs from the second schematic.

      Delete
    5. No problem.
      I've added a layout for the extra circuit you would need.

      Delete
    6. That is awesome. Now it's a breeze.

      Delete
  36. Has anyone verified this one 100%?

    ReplyDelete
  37. Awesome and thanks. The reason I asked if it was 100% was because I read above that people were having issues with the volume sweep.

    ReplyDelete
  38. Alex, do you plan to make a logic channel switching layout on vero?

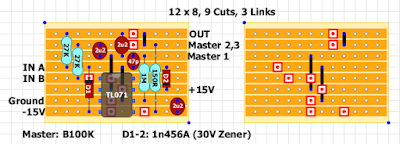

    As I understand, in this circuit used two MC14506BCP

    ReplyDelete
  39. What size enclosure does this fit in?

    ReplyDelete
    Replies
    1. PCB with components without potentiometers dimensions 85x60x19mm

      Delete
  40. hi all! my little demo of this preamp
    https://soundcloud.com/telesonic/berta

    ReplyDelete
  41. This comment has been removed by the author.

    ReplyDelete
  42. This comment has been removed by the author.

    ReplyDelete
  43. any recomendations on the 4069? there are too many options and I don't have any clue.

    ReplyDelete
  44. This comment has been removed by the author.

    ReplyDelete
  45. what does the yellow square and brown oval caps mean? and how can I add additionally a xlr output?

    ReplyDelete
  46. Hi i have build this one few days ago and i have problem when i insert ic 4558 and immediately i get -3 volt on -15v rail (the one 4558 that has 33pf on his right side) if anyone can help that would mean a lot

    ReplyDelete
    Replies
    1. I had a similar issue. My fault was that I built the board mirrored and didn't think about that you can't mirror the ics... Because of that I had 15v on pin 1 and not on pin 8. That led to the huge voltage reduction in my case. If the problem only appears while installing this peticular ic, maybe the ic is broken? Or upside down? ;)

      Delete
  47. hi there!
    thanks for your great work!!
    I am building this preamp at the moment and have a little question concerning the polarity of the caps.
    for the 2u2 positions I only found some polarised tantalum caps. Unfortunately I am not able to find out which way round they need to be installed... any help is totally appreciated!!

    Thanks in advance!
    Georg

    ReplyDelete
    Replies
    1. Get some of these and put them in series to get to 2uf https://www.taydaelectronics.com/capacitors/polyester-film-box-type-capacitors/1uf-100v-5-polyester-film-box-type-capacitor.html

      Delete
  48. How does the A/B version work? The actual Sunn Beta has an input for both, but I don't see that here. I know you make the whole layout twice and connect the outputs with the daughter board shown above, but where does the single input to both channels go? And if you don't include it, how do you use both channels? Having the outputs combined with aaster pot doesn't make sense to me if you don't have an input that goes to both channels. . . Can someone help me understand?

    ReplyDelete
  49. I think I came up with a switching solution to have one input, a toggle between [A OR B] and [A & B] modes, and a footswitch to switch between A and B channels
    while in [A OR B] mode. https://i.imgur.com/WjywEh2.png

    I didn't account for status LEDs while in [A OR B] mode, but I imagine you could use a dpdt switch instead of spdt and make it happen somewhat easily.

    ReplyDelete
  50. Hey, if I use the MASTER daughterboard will I need to put in a separate signal splitter? I mean, there are two inputs and thus 2 Outputs. When the two Outputs are blended, how is it possible to feed both preamps with a signal? Or did I get that wrong? Will it be blended ? 😂

    ReplyDelete
    Replies
    1. don't know wether I get it correct. But you connect the two Outputs of the preamps with the master board inputs. the signals will be mixed together as it's in the original beta amplifier. output of the master board goes to the power amp or whatever you want. ;)

      Delete
    2. Hey, thanks for your reply. The master daughterboard is not the problem. I have one input signal from my guitar and to blend both channels I have to feed both mainboards with a guitar signal?! So I need a splitter to put in front of this circuit, don't I ?

      Delete
  51. Hi there,
    I got another noobish question... I managed to build the preamp and also built the +/-15v power supply as shown above. When I measure the power supply it delivers round about 15v (have to use a 7.5v input to achieve that)
    When I try to connect the power supply with the preamp board the -15v are reduced to -4V and the +15v reach maximum 10v. The LT1054 of the power supply gets really hot. So I disconnected that thing quick. After disconnecting I measure the correct voltage again. Any ideas where the fault could be?? :-D
    thanks in advance!
    georg

    ReplyDelete
    Replies
    1. Solved! Now I get an output signal, yeah. Still some minor bugs though... ;)

      Delete
  52. Hey guys here is a little test-run of my preamp. Have fun!

    https://youtu.be/MXjmMMn5Yp4

    PS: language is german. Preamp sound at about 1 min.

    ReplyDelete
  53. This comment has been removed by the author.

    ReplyDelete
    Replies
    1. This comment has been removed by the author.

      Delete
  54. My 100nf cap turned out to be the wrong kind (some weird polarized thing rather than a regular cap) and replacing that helped a lot. Now it sounds better but it's losing gain somewhere still- the sustain dies out early enough that I can still physically see the string vibrating, but the sound is basically gone. Time to check feedback resistors maybe.

    ReplyDelete
    Replies
    1. I rebuilt the whole thing, my amazon stripboard was cracking and something was clearly just fundamentally not right. Now it's working perfectly and oh man, that thing ROARS now. Sounds significantly better than the real Beta that I used to have, and I would say it almost has too much gain. It cleans up so nicely though, and is wicked dynamic with your pick attack.

      Delete
  55. Can somebody help me how to wire A/B, A+B, BYPASS switches for a double circuit build with MASTER daughter board?

    ReplyDelete
  56. Is it possible to use this as voltage converter ?
    https://www.aliexpress.com/item/33035030881.html
    3V-18V to +-15V 1.8A 2A Positive & Negative Dual DC DC Converter Step-up Boost Module Regulator Board

    ReplyDelete
  57. So, if I build 2 boards (one bass, one lead), can I use one input jack and tie the board inputs together at the switch? If I do this, essentially both circuits would be on and I could just turn down the volume on one or the other if I wanna switch between bass/lead? Am I understanding this correctly? It'd be nice to use a switch for bass/lead/both or use 3 separate jacks but I'm not entirely clear on how to wire that up. Anyone have any input on this?

    ReplyDelete
  58. To reply to myself, it looks like I can just use a dpdt on-on-on switch and wire it up like on all the other preamp layouts to switch between bass, lead, or both.

    ReplyDelete
    Replies
    1. To reply to myself again (or anyone who may be wondering) I finished one today that has 2 full circuits (1 bass, 1 lead), with the master volume, and the +/- 15v board from the Rusty Box. To switch between lead, bass, or both I used an on/on/on dpdt wired the way the channel switching is done on some of the other preamp boards (i.e. the Model T). Works great!

      Delete
  59. Hey guys !
    I just made my own one and it already rocks ! Thanks for publishing this swwetie. But something seems weird :
    turning up the medium pot increases the volume a lot and makes a gradualy intense hissing noise. The bass and treble pots do work, but not as much as one could wait for...
    I made a lot of tests (including those ) without any result...
    Anyone had the same problem here ? Any idea ?
    Thanks in advance
    Toad

    ReplyDelete
  60. Finally finished my project of building a rack version including the original switching logic. Works like a charme:
    https://youtu.be/-8qFw_xK3ps

    ReplyDelete
  61. Hey, I'm not able to source the 1N456A's, will any 30V Zener work? I can buy 1N4751's locally and wanted to know if this is a suitable alternative. Thanks,

    ReplyDelete
  62. *Knock Knock*… if anyone is still out there, I have a little issue that could use some expert brainpower:
    So, I just finished building this guy using the 1054 bipolar voltage converter and overall the circuit sounds incredible, BUT I have a constant 7K-ish whine that just won't go away.
    I discerned, by accident, that running a jumper between lugs 1 and 4, and another between lugs 3 and 6 of the "drive" pot greatly reduces the volume of said noise. Now, if I hold the Drive pot in my hand while putting a fair amount of pressure on lugs 1,3,4,6, the noise disappears completely (This makes it difficult to play anything meaningful, unfortunately) and the circuit sounds great.
    Increasing the Drive pot certainly increases the noise, as does using the Treble pot. The pedal is definitely playable, but it would be great if I could get that noise to go away… is it the LT1054? Is it the board itself?

    Lastly, I use a Strat w/ EMG active pickups, so is it possible that this is a more or less normal amount of noise that my guitar is blowing out of proportion… or should I maybe go into my interface at Line level when using the Sunn Beta? So many questions!!

    I am not yet smart enough to figure it out on my own and I could really use YOUR help! ;)

    ReplyDelete
