ZVEX Fuzzolo

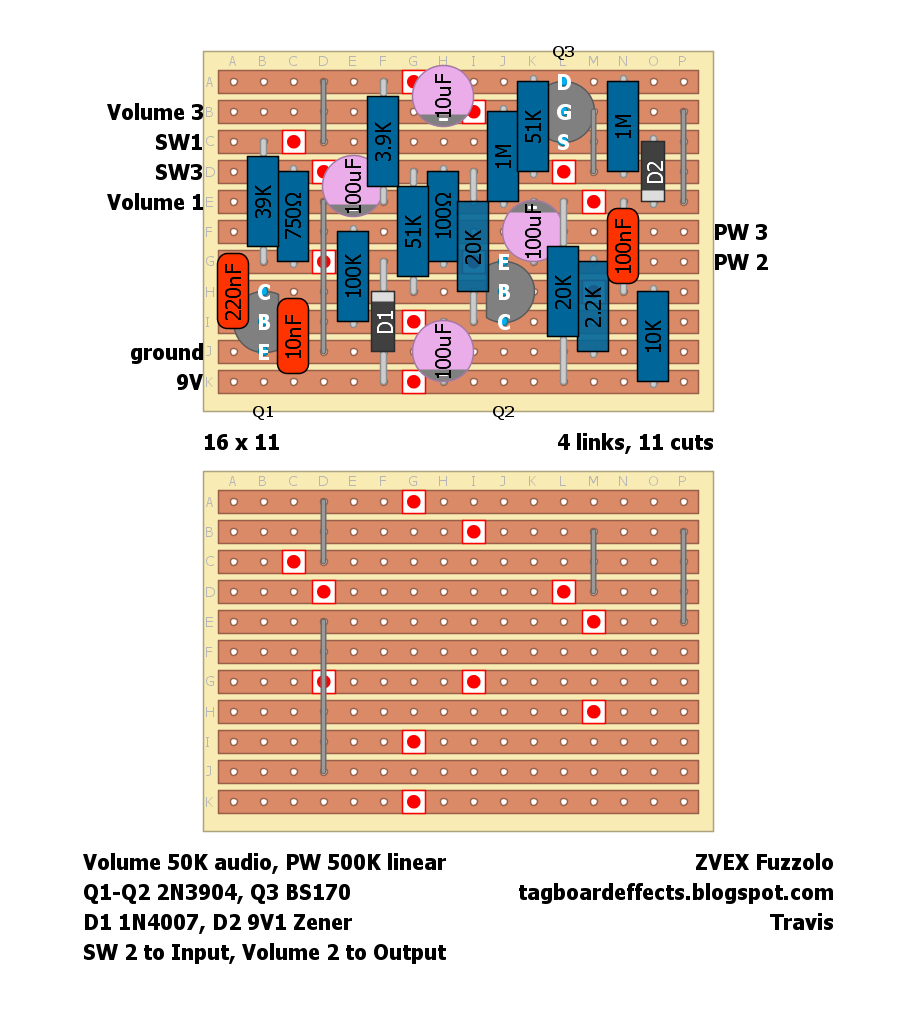

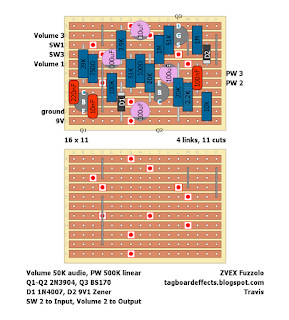

This cool sounding fuzz was traced by our very own Ciaran Haslett in the forum. Check the forum for Ciaran's schematic, info, and layout (which is one column smaller than mine). I noticed Ciaran requested that this be redrawn for the main site, here you go :)
